Closure Products

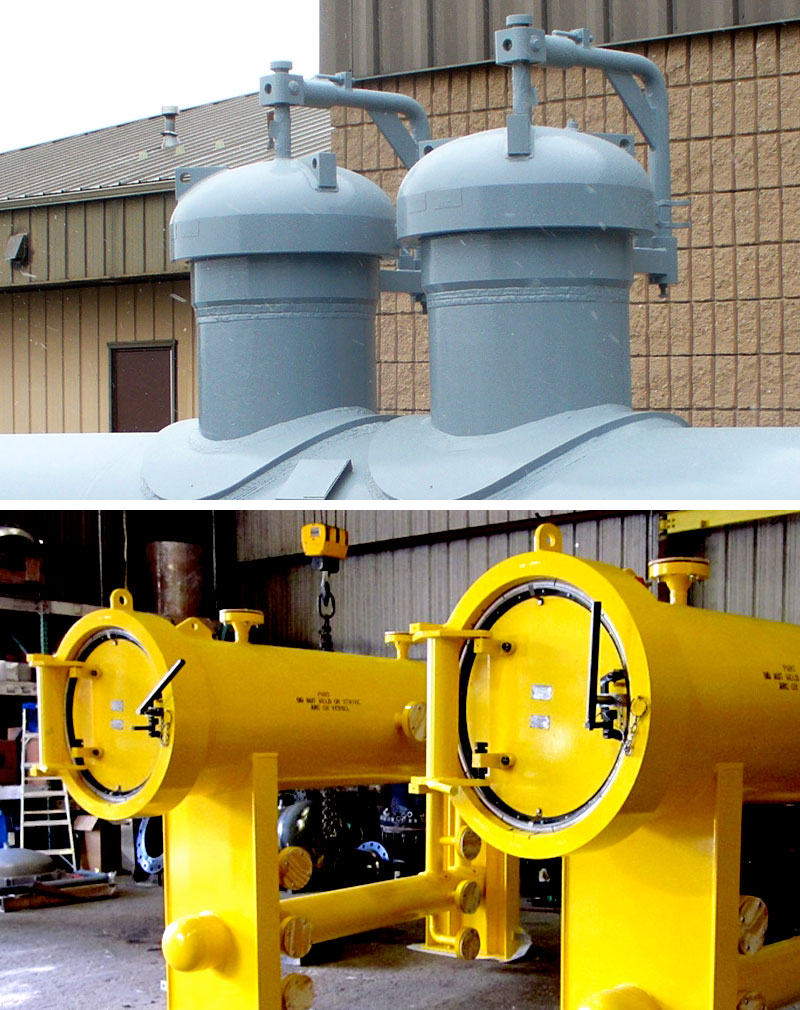

Tube Turns® Products of Sypris Technologies Inc. manufactures a family of closures in sizes ranging from 2" to 72". Our closures are manufactured from a wide variety of ASME approved materials including Carbon Steel, Stainless Steel (304, 304L, 316, 316L, Duplex and Super Duplex), Monel®, Inconel®, Hastelloy® and other exotic materials as specified by our customers. Tube Turns® designs and manufactures a complete line of closures to international standards, including ASME Section VIII Division I and Division II, PD 5500 / BS EN 13445, with termination specifications to meet ASME B31.3, B31.4, B31.8 and many others.

All closures can be designed for either horizontal or vertical application and can be equipped with such accessories as sight glasses, nozzles, drains, gauges, sampling ports, open/close automation, and safety interlocks. Connection types including full and reduced access as well as mitred designs for inclined or declined vessels are available. Sypris Technologies, Tube Turns® Products offers the most diverse and complete closure product portfolio in the world.

Download Brochure PDF

Monolithic Insulated Joints

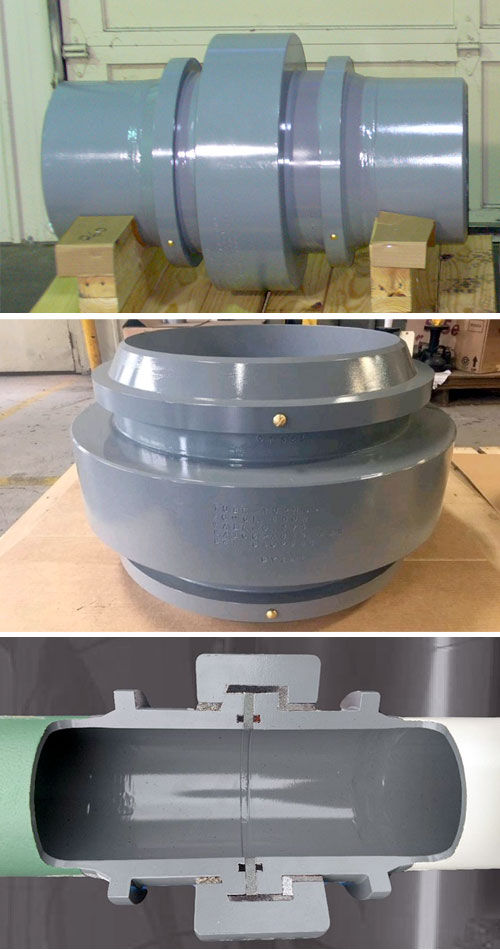

Insulated Joints (also referred to as "Isolation Joints" or "Insulating Joints") are available in sizes ranging from 2" thru 48" and pressure ranging from ANSI 150 to ANSI 900.

Tube Turns® Monolithic Insulated Joints electrically isolate sections of pipeline to prevent corrosion caused by stray electrical currents or interference from other pipelines and power transmission cables.

Three features assure electrical isolation:

1. Insulating gasket that prevents metal-to-metal contact across the joint
2. Internal cavities filled with a special dielectric compound
3. Internal and external surfaces coated with two (2) coats of non-conductive epoxy paint, or coating per the customer's specification.

The weld end hubs of our Insulating joints are provided in compliance with the customer’s piping specification. Optional extra-length pipe pups (provided by the customer) can be included in the completed joint.

Tube Turns® Monolithic Joints feature a pre-fabricated, non-separable, and bolt-less design to satisfy customers that require a single-piece construction for simplicity of installation, elimination of maintenance, and ease of final wrapping and coating after installation in the pipeline. Pressure Fatigue, Torsion and Bending proof testing of the design was carried out to provide a design that is physically stronger than the pipe to which it is attached.

Tube Turns® is fully qualified to provide in-house Magnetic Particle, Ultrasonic, and Liquid Penetrant examination along with NDE test reports to meet customer requirements.

Each joint manufactured by Tube Turns® is completely factory assembled and hydro-statically tested to 1.5 times the working pressure before shipment. In addition, each joint is electrically tested to verify its insulating capability. No maintenance required for the entire service life of the insulating joint.

These connections are known in the pipeline industry by various terms such as the following:

• Monolithic Insulating Joint
• Monolithic Insulation Joint
• Monolithic Isolating Joint
• Monolithic Isolation Joint

IJ Brochure PDF Tube Turn® IJ PDF Pipe Pup IJ PDF
